Pilot Ladder Safety on High Sided Ships

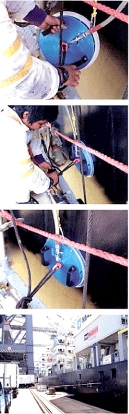

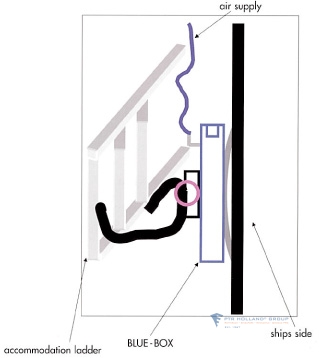

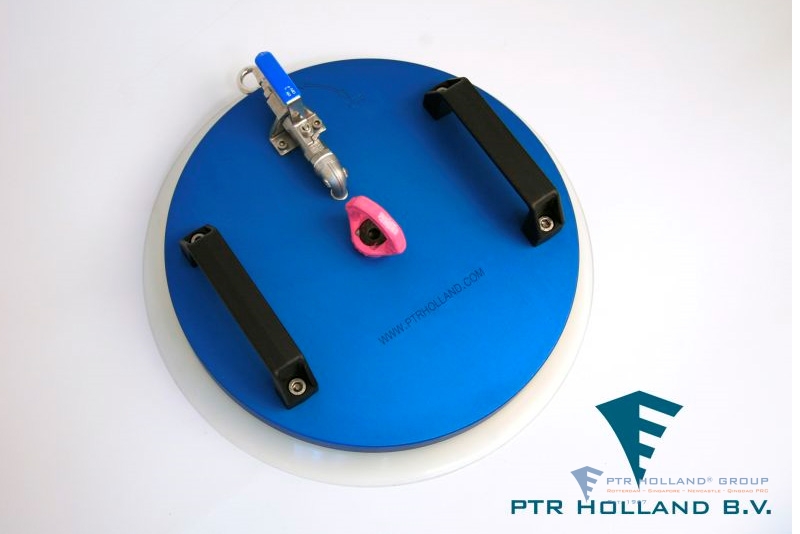

The “Blue Box” suction pad is used to secure the bottom of the accommodation ladder to the ship’s side and insures the accommodation ladder rests firmly against the ships side in a cost effective, safe and practical manner.

The Blue Box operates from free supplied deck air at 6-7 Kg/cm2 the unit is made from non ferrous materials therefor is resistant to corrosion, it is light weight at approximately 6 kgs, can be stored easily, is portable and robust. This simple device can solve many problems associated with high free board vessels and is an added safety device which may save injury to pilots and crew alike.

The unit can also be used for other applications where a point of attachment is required on any flat surfaces, it can also be used as a lifting device where no attacment point is available, i.e. lifting steel plates etc.



Higher safety at pilot transfer:

  • No more uncontrolled movements at sea
  • Usable on different materials

Range of applications

  • Stabilization of accomodation ladder
  • Stabilization of sailors seat
  • Fixture of objects
  • Variable range of applications

Information

  • Power supply: compressed air (without electrical energy!)
  • Pressure range 25 to 102 PSI
  • If compressed air supply is interrupt, holding force = 0 N
  • Compact solution
  • Weight only 7,0 kg
  • Most economic consumtpion of compressed air 26,4 NI/min
  • Right angled holding force 6.67 KN at 80& Vacuum
  • Easy to handle

  1. Connect one end of the air-pipe with the onboard air-supply (50 – 100 PSI = 2,5 – 7 bar)

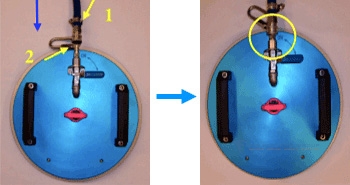

  2. Connect the second end (1) of the air-pipe with the Blue Box-Connector (2)
    blue_box_manual_step2

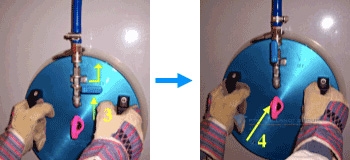

  3. Put the Blue Box onto the hull and turn the switch (3) to on-position. The Blue Box works and a vacuum will be generated
    blue_box_manual_step3
  4. You can now tie a rope to the pink ring bolt (4) to finally secure the gangway / pilot ladder
  5. To remove the Blue Box, turn the swtich (3) in off-position. The vacuum will break down so you can remove the Blue Box
    blue_box_manual_step5
- +
