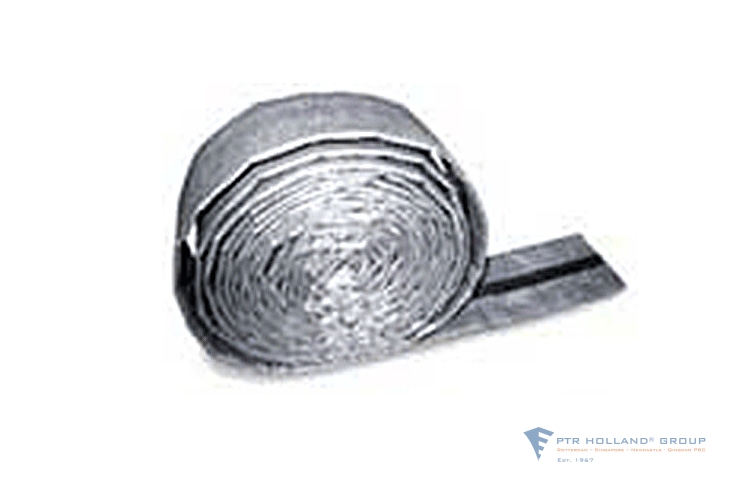

NoSpray Shields
NoSpray® Shields are designed to contain the spray of hazardous liquids in vessel engine rooms, a cause of dangerous fires and loss of life and property. NoSpray® Shields are manufactured in multiple layers from a silicone rubber applied on a silica fibre fabric, specially formulated to withstand high temperatures and pressures, and an aluminum foil lining, which creates a corrosion resistant barrier for long lasting protection.
NoSpray® Shields are available in various widths which can be cut to size for use on flanges, valves, fittings, or any irregular shaped surface which can leak hazardous liquids.
NoSpray® Shields encapsulate the protected surface and are easily installed using our drawstring system. Removable, reusable and extremely durable. NoSpray® Shields provide a consistent, clean look in vessel engine rooms.
| Width | Lenght | Rolls/box | Typical Use |
|---|---|---|---|
| 100 mm (4′) | 5m (16.5′) | 3 | For typical flanges on a 25 mm (0.5″) to 50 mm (1″) pipe diameter |
| 150 mm (6′) | 5m (16.5′) | 2 | For typical flanges on a 50 mm (1″) to 100 mm (2″) pipe diameter |
| 300 mm (12′) | 5m (16.5′) | 1 | For typical flanges on a 100 mm (2″) pipe diameter and up |
Meets SOLAS Regulation II – 2/15.2.11
Installation Instructions
- Measure the outside diameter of the flange and cut the NoSpray Shield to a length of 130%.
- Cut a small hole about 1″ (25 mm) from each end of the shield on the pocket.
- Centre the shield on the flange and wrap snugly, overlapping the ends.
- Thread a lacing wire through each of the two cut holes and pull the lacing wire through the pockets.
- Draw together and fold under the cut edge of Shield for a neat finish.
- When pulled together snugly, secure with pliers and cut off excess wire.
